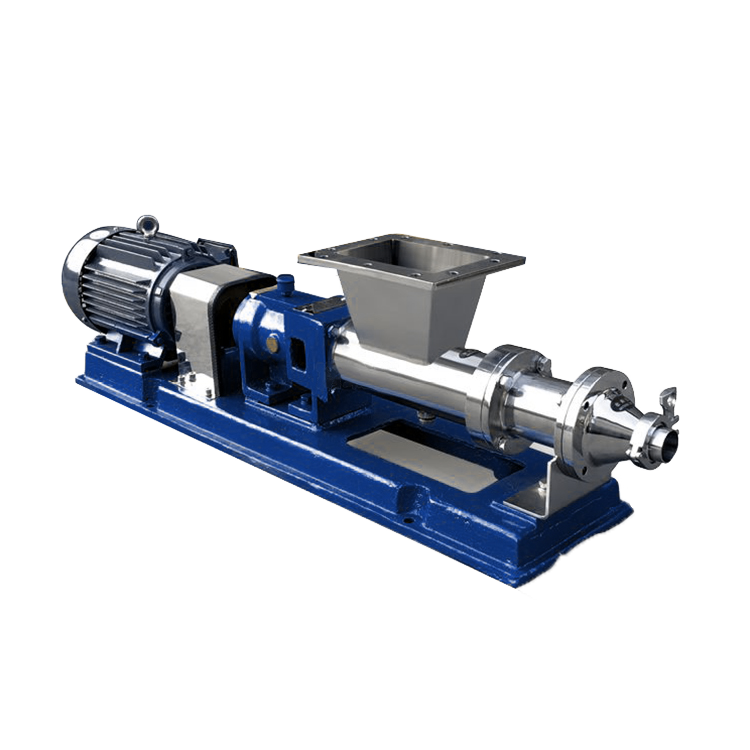

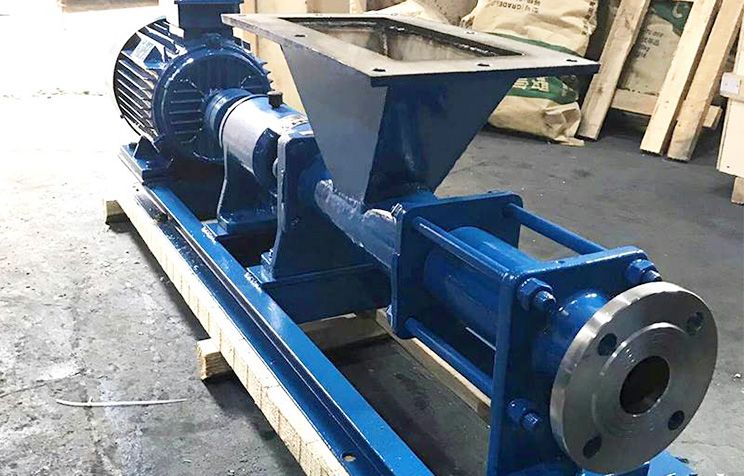

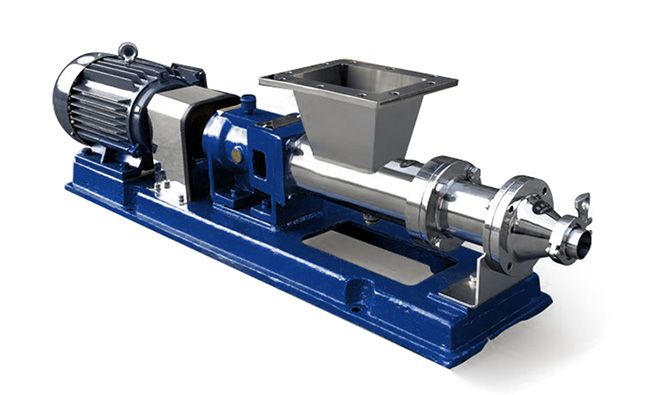

Food Screw Pump

The Food screw pump is a closed screw pump with internal meshing, which is a rotor type positive displacement pump. The screw pump has strong adaptability to the medium. stable flow, small pressure pulsation, good suction performance, and can transport all kinds of flow able media. ln addition, it can also transport highly viscous media, media containing hard suspended particles on solid particles, and media containing fibers. It has good adjustment performance, wide range and high efficiency. Therefore it is used in environmental protection, petroleum, medicine, and daily chemicals, food, brewing, construction, mining, chemistry, printing, paper making, power plants, boilers and other industries are widely used.

Inquire Now

ADVANTAGE

Fast Delivery
Stock products: 3 days
Customized products: 15 days
After Sale Services
We offer 36 months warranty
OEM&ODM Available
We accept OEM&ODM for any quantity
Customize Capability
All materials customizable
All capabilities customizable
Service Support
Non-disclosure agreement
24-hour online video call after-sales service
Good sealing performance
Alloy seals of different materials are used to transport different media without leakage.

FUNCTION

Material: cast iron/SS304
Flow: 0.8~150m³/h
Pressure: 1.6/1.2mpa
Power: 0.75~30kw
Speed: 630~960r/min

APPLICATION

Petrochemical
Bio-pharmacy
Daily chemical
Food process
Printing and dyeing

Do You Have Any Questions In Your Mind?

Ask us we will solve your questions and try to send free sample kit of your requested matierial

Inquire Now

SPECIFICATION

Types	Capacity	Pressure	Maximum Speed	Motor Power	NPSH	Suction Diameter	Discharge Diameter	Particle diameter	Fiber length
	(m3/h)	(Mpa)	(r/min)	(kw)	(m)	(mm)	(mm)	(mm)	(mm)
G20-1	0.8	0.6	960	0.75	4	25	25	1.5	25
G20-2		1.2		1.5
G25-1	2	0.6	960	1.5		32	25	2	30
G25-2		1.2		2.2
G30-1	5	0.6	960	2.2		50	40	2.5	35
G30-2		1.2		3
G35-1	8	0.6	960	3		65	50	3	40
G35-2		1.2		4
G40-1	12	0.6	960	4		80	65	3.8	45
G40-2		1.2		5.5
G50-1	20	0.6	960	5.5	4.5	100	80	5	50
G50-2		1.2		7.5
G60-1	30	0.6	960	11	5	125	100	6	60
G60-2		1.2		15
G70-1	45	0.6	720	11		150	125	8	70
G70-2		1.2		18.5
G85-1	56	0.6	630	15		150	150	10	80
G85-2		1.2		30
G105-1	100	0.6	500	30		200	200	15	110
G105-2		1.2		55
G135-1	150	0.6	400	45		250	250	20	150
G135-2		1.2		90

Expand all

STRUCTURE

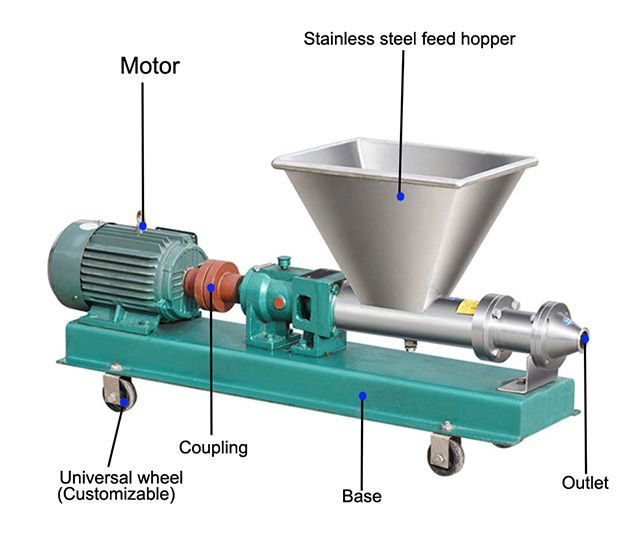

Screw Pump Composition

LATEST CASE

DETAILS

Pump body castings
Self-produced molds, thickened castings, Optional cast iron, stainless steel material Precise control of installation dimensions, complete drawings

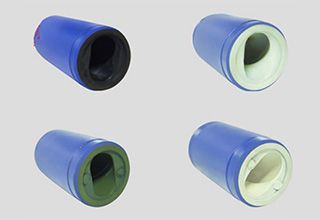

Stator Optional
Standard nitrile rubber or natural rubber stator, The following materials are available: Nitrile rubber Natural rubber stator Silicone stator Viton stator White nitrile rubber stator

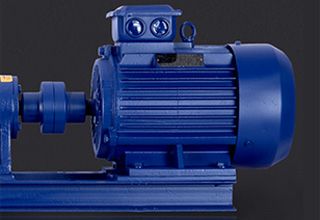

Copper Motor
Full copper wire configuration, stable bass operation, Corresponding to different working conditions, it can be replaced with different motor adjustments such as explosion-proof, frequency conversion, stepless speed regulation, gear reduction, etc.

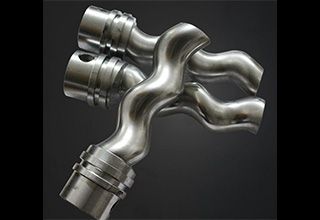

Stainless Steel Screw Shaft
The screw shaft is 304 stainless steel, Does not rust and prolongs service life.

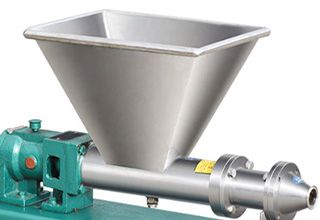

Food grade 316, 304 stainless steel funnel
Hoppers of various specifications can be customized according to customers.

WORKING CONDITIONS

Precautions for use:

1. The direction must be determined before turning on the machine, and no reversal is allowed: 2. It is strictly forbidden to run dry without medium to avoid damage to the stator; 3. The pump that is newly installed or stopped for several days cannot be started immediately. You should inject a proper amount of oil or soapy water into the pump body, and then use a pipe wrench for a few turns before starting; 4. After transporting high-viscosity or particle-containing and corrosive media, water or solvent should be used for flushing to prevent blockage, so as to avoid difficulty in starting next time; 5. In winter, the effusion should be removed to prevent freezing and cracking; 6. Lubricating oil should be added to the bearing seat regularly during use, and if there is leakage at the shaft end, the oil seal should be treated or replaced in time; 7. If an abnormal situation is found during operation, stop immediately to check the cause and eliminate the fault.

Our quality can be trusted

Our products have unique advantages in food, mining, electric power, farmland irrigation, river dredging, pipeline pressurization, sewage treatment and other fields.
