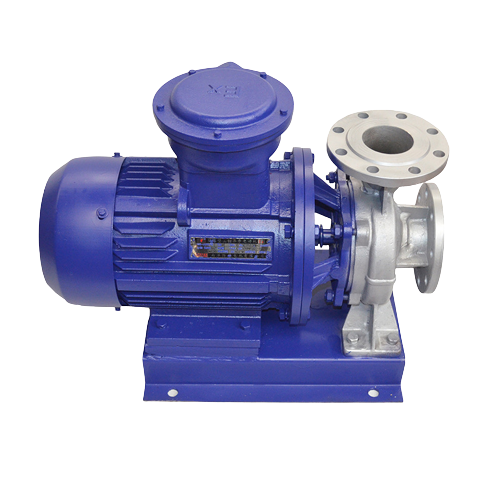

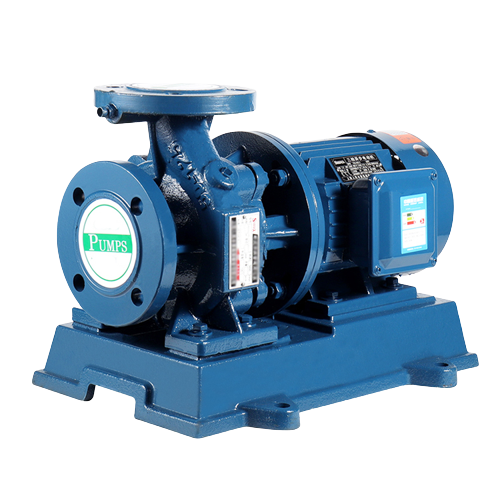

IS Series End Suction Pump

IS series clean water pumps/horizontal pipeline pumps are single-stage end-suction centrifugal pumps. The horizontal pipeline pump is cleverly combined, developed and designed on the basis of the IS clean water pump. Its biggest change is that the impeller of the water pump is directly installed on the extended shaft of the motor, which shortens the length of the water pump and reduces the loss of the motor. , which improves the efficiency. This series of products has environmental protection, high efficiency and energy saving, low noise, stable operation and reliable performance.

Inquire Now

ADVANTAGE

Fast Delivery
Stock products: 3 days
Customized products: 15 days
After Sale Services
We offer 36 months warranty
OEM&ODM Available
We accept OEM&ODM for any quantity
Customize Capability
All materials customizable
All capabilities customizable
Service Support
Non-disclosure agreement
24-hour online video call after-sales service
Good sealing performance
Alloy seals of different materials are used to transport different media without leakage.

FUNCTION

The material can be customized according to the use requirements

IS series end suction pumps/horizontal pipeline pumps are used to transport clean water and other liquids whose physical and chemical properties are similar to clean water. It is suitable for industrial and urban water supply and drainage, pressurized water supply for high-rise buildings, HVAC refrigeration cycle, etc.

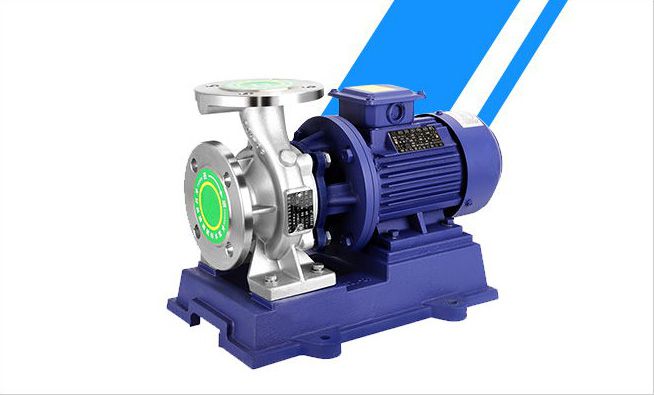

Stainless steel pipeline pumps are used to transport liquids that do not contain solid particles, are corrosive, and have a viscosity similar to water. It is suitable for petroleum, chemical industry, metallurgy, electric power, papermaking, food, pharmaceutical and synthetic fiber departments, and the operating temperature is -20℃～+120℃.

APPLICATION

Garden sprinkler irrigation
High-rise building
Fire pressurization
Long-distance transportation

Do You Have Any Questions In Your Mind?

Ask us we will solve your questions and try to send free sample kit of your requested matierial

Inquire Now

SPECIFICATION

Performance parameter table
Types	Speed	Capacity		Head	efficiency	Shaft power	Motor Power	NPSH	Impeller diameter
Types	(r/min)	m3/h	L/S	(m)	(%)	(kw)	(kw)	(m)	(mm)
50-32-125	2900	12.5	3.47	20	60	1.13	2.2	2	130
50-32-125	1450	6.3	1.74	5	54	0.16	0.55	2	130
50-32-125A	2900	11.2	3.11	16	58	0.84	1.1	2	116.5
50-32-125A	1450	5.6	1.56	4	52	0.12	0.55	2	116.5
50-32-160	2900	12.5	3.47	32	54	2.02	3	2	158
50-32-160	1450	6.3	1.74	8	48	0.28	0.55	2	158
50-32-160A	2900	11.7	3.25	28	51	1.72	2.2	2	148
50-32-160A	1450	5.9	1.64	7	46	0.25	0.55	2	148
50-32-160B	2900	10.8	3.01	24	50	1.42	2.2	2	137
50-32-160B	1450	5.4	1.5	6	44	0.2	0.55	2	137
50-32-200	2900	12.5	3.47	50	48	3.54	5.5	2	198
50-32-200	1450	6.3	1.74	12.5	42	0.51	0.75	2	198
50-32-200A	2900	11.7	3.25	44	46	3.25	4	2	185.5
50-32-200A	1450	5.9	1.64	11	40	0.44	0.55	2	185.5
50-32-200B	2900	10.8	3.01	38	44	2.55	3	2	172.5
50-32-200B	1450	5.4	1.5	9.5	38	0.37	0.55	2	172.5
50-32-250	2900	12.5	3.47	80	38	7.16	11	2	250
50-32-250	1450	6.3	1.74	20	32	1.07	1.5	2	250
50-32-250A	2900	11.7	3.25	70	36	6.2	7.5	2	234
50-32-250A	1450	5.9	1.64	17.5	30	0.94	1.5	2	234
50-32-250B	2900	10.8	3.01	60	34	5.21	7.5	2	216.5
50-32-250B	1450	5.4	1.5	15	28	0.79	1.1	2	216.5
65-50-125	2900	25	6.94	20	69	1.97	3	2	130
65-50-125	1450	12.5	3.47	5	64	0.27	0.55	2	130
65-50-125A	2900	22.4	6.22	16	67	1.46	2.2	2	116.5
65-50-125A	1450	11.2	3.11	4	62	0.2	0.55	2	116.5
65-50-160	2900	25	6.94	32	65	3.35	5.5	2	165
65-50-160	1450	12.5	3.47	8	60	0.45	0.75	2	165
65-50-160A	2900	23.4	6.5	28	63	2.83	4	2	154.5
65-50-160A	1450	11.7	3.25	7	58	0.38	0.55	2	154.5
65-50-160B	2900	21.7	6.03	24	61	2.33	3	2	143
65-50-160B	1450	10.8	3.01	6	56	0.32	0.55	2	143
65-40-200	2900	25	6.94	50	60	5.67	7.5	2	200
65-40-200	1450	12.5	3.47	12 .5	55	0.77	1.1	2	200
65-40-200A	2900	23.4	6.5	44	58	4.83	7.5	2	187.5
65-40-200A	1450	11.7	3.25	11	53	0.66	1.1	2	187.5
65-40-200B	2900	21.7	6.03	38	56	4.01	5.5	2	174.5
65-40-200B	1450	10.8	3.01	9.5	51	0.55	0.75	2	174.5
65-40-250	2900	25	6.94	80	53	10.3	15	2	254
65-40-250	1450	12.5	3.47	20	48	1.42	2.2	2	254
65-40-250A	2900	23.4	6.5	70	51	8.75	11	2	237.5
65-40-250A	1450	11.7	3.25	17.5	46	1.21	1.5	2	237.5
65-40-250B	2900	21.7	6.03	60	49	7.24	11	2	220
65-40-250B	1450	10.8	3.01	15	44	1.01	1.5	2	220
65-40-315	2900	25	6.94	125	40	21.3	30	2.5	315
65-40-315	1450	12.5	3.47	32	37	2.94	4	2.5	315
65-40-315A	2900	23.9	6.64	114	38	19.53	22	2.5	301
65-40-315A	1450	11.9	3.32	28.5	35	2.65	4	2.5	301
65-40-315B	2900	22.7	6.3	103	36	17.67	22	2.5	286
65-40-315B	1450	11.3	3.15	25.8	33	2.41	3	2.5	286
65-40-315C	2900	21.4	5.94	92	35	15.31	18.5	2.5	270
65-40-315C	1450	10.7	2.97	23	32	2.09	3	2.5	270
80-65-125	2900	50	13.9	20	75	3.63	5.5	3	137
80-65-125	1450	25	6.94	5	71	0.48	0.75	2.5	137
80-65-125A	2900	44.7	12.42	16	73	2.67	4	3	124.5
80-65-125A	1450	22.4	6.22	4	69	0.35	0.55	2.5	124.5
80-65-160	2900	50	13.9	32	73	5.97	7.5	2.5	168
80-65-160	1450	25	6.94	8	69	0.79	1.5	2.5	168
80-65-160A	2900	46.8	13	28	71	5.03	7.5	2.5	157
80-65-160A	1450	23.4	6.5	7	67	0.67	1.1	2.5	157
80-65-160B	2900	43.3	12.04	24	69	4.11	5.5	2.5	145.5
80-65-160B	1450	21.7	6.03	6	65	0.55	0.75	2.5	145.5
80-50-200	2900	50	13.9	50	69	9.87	15	2.5	202
80-50-200	1450	25	6.94	12.5	65	1.31	2.2	2.5	202
80-50-200A	2900	46.8	13	44	67	8.37	11	2.5	189.5
80-50-200A	1450	23.4	6.5	11	63	1.11	1.5	2.5	189.5
80-50-200B	2900	43.3	12.04	38	65	6.9	11	2.5	176
80-50-200B	1450	21.7	6.03	9.5	61	0.92	1.1	2.5	176
80-50-250	2900	50	13.9	80	63	17.3	22	2.5	250
80-50-250	1450	25	6.94	20	60	2.27	3	2.5	250
80-50-250A	2900	46.8	13	70	61	14.63	18.5	2.5	234
80-50-250A	1450	23.4	6.5	17.5	58	1.92	2.2	2.5	234
80-50-250B	2900	43.3	12.04	60	59	12	15	2.5	216.5
80-50-250B	1450	21.7	6.03	15	56	1.58	2.2	2.5	216.5
80-50-315	2900	50	13.9	125	54	31.5	37	2.5	315
80-50-315	1450	25	6.94	32	52	4.19	5.5	2.5	315
80-50-315A	2900	47.7	13.25	114	52	28.5	37	2.5	301
80-50-315A	1450	23.8	6.62	28.5	50	3.7	5.5	2.5	301
80-50-135B	2900	45.4	12.6	103	50	25.45	30	2.5	286
80-50-135B	1450	22.7	6.3	25.8	48	3.32	4	2.5	286
80-50-315C	2900	42.9	11.9	92	49	21.9	30	2.5	270
80-50-315C	1450	21.4	5.94	23	47	2.85	4	2.5	270
100-80-125	2900	100	27.8	20	78	7	11	4.5	139
100-80-125	1450	50	13.9	5	75	0.91	1.5	2.5	139
100-80-125A	2900	89.4	24.83	16	76	5.13	7.5	4.5	124.5
100-80-125A	1450	44.7	12.42	4	73	0.67	1.1	2.5	124.5
100-80-160	2900	100	27.8	32	78	11.2	15	4	170
100-80-160	1450	50	13.9	8	75	1.45	2.2	2.5	170
100-80-160A	2900	93.5	26	28	76	9.39	11	4	159
100-80-160A	1450	46.8	13	7	73	1.22	1.5	2.5	159
100-80-160B	2900	86.6	24.1	24	74	7.66	11	4	147
100-80-160B	1450	43.3	12.04	6	71	0.998	1.5	2.5	147
100-65-200	2900	100	27.8	50	76	17.9	22	3.6	203
100-65-200	1450	50	13.9	12.5	73	2.33	4	2	203
100-65-200A	2900	93.5	26	44	74	15.16	18.5	3.6	190.5
100-65-200A	1450	46.8	13	11	71	1.97	3	2	190.5
100-65-200B	2900	86.6	24.1	38	72	12.47	15	3.6	177
100-65-200B	1450	43.3	12.04	9.5	69	1.63	2.2	2	177
100-65-250	2900	100	27.8	80	72	30.3	37	3.8	255
100-65-250	1450	50	13.9	20	68	4	5.5	2	255
100-65-250A	2900	93.5	26	70	70	25.49	30	3.8	238.5
100-65-250A	1450	46.8	13	17.5	66	3.38	4	2	238.5
100-65-250B	2900	86.6	24.1	60	68	20.85	22	3.8	221
100-65-250B	1450	43.3	12.04	15	64	2.77	4	2	221
100-65-315	2900	100	27.8	125	66	51.6	75	3.6	315.5
100-65-315	1450	50	13.9	32	63	6.92	11	2	315.5
100-65-315A	2900	95.5	26.53	114	64	46.34	55	3.6	301.5
	1450	47.7	13.25	28.5	61	6.07	7.5	2
100-65-315B	2900	90.8	25.2	103	62	41.04	45	3.6	286.5
100-65-315B	1450	45.4	12.6	25.8	59	5.4	7.5	2
100-65-315C	2900	85.8	23.83	92	61	35.24	45	3.6	270.5
100-65-315C	1450	42.9	11.9	23	58	4.63	5.5	2
125-100-200	2900	200	55.6	50	81	33.6	45	4.5	216
125-100-200	1450	100	27.8	12.5	76	4.48	7.5	2.5
125-100-200A	2900	187	52	44	79	28.39	37	4.5	202.5
125-100-200A	1450	93.5	26	11	74	3.79	5.5	2.5
125-100-200B	2900	173	48.1	38	77	23.27	30	4.5	188.5
125-100-200B	1450	86.5	24.1	9.5	72	3.12	4	2.5
125-100-250	2900	200	55.6	80	78	55.9	75	4.2	255
125-100-250	1450	100	27.8	20	76	7.17	11	2.5
125-100-250A	2900	187	52	70	76	46.96	55	4.2	238.5
125-100-250A	1450	93.5	26	17.5	74	6.03	7.5	2.5
125-100-250B	2900	173	48.1	60	74	38.24	45	4.2	211
125-100-250B	1450	86.5	24.1	15	72	4.92	5.5	2.5
125-100-315	2900	200	55.6	125	75	90.8	110	4.5	317
125-100-315	1450	100	27.8	32	73	11.9	15	2.5
125-100-315A	2900	191	53.1	114	73	81.3	90	4.5	302.5
125-100-315A	1450	95.5	26.53	28.5	71	10.44	15	2.5
125-100-315B	2900	181.6	50.44	103	71	71.74	90	4.5	288
125-100-315B	1450	90.8	25.2	25.8	69	9.24	11	2.5
125-100-315C	2900	171.6	47.66	92	70	61.41	75	4.5	272
125-100-315C	1450	85.8	23.83	23	68	7.9	11	2.5
125-100-400	1450	100	27.8	50	65	21	30	2.5	395
125-100-400A	1450	93.5	26	44	63	17.8	22	2.5	370.5
125-100-400B	1450	86.5	24	38	61	14.66	18.5	2.5	344.5
150-125-250	1450	200	55.6	20	81	13.5	18.5	3	260
150-125-250A	1450	187	52	17.5	79	11.29	15	3	243.5
150-125-250B	1450	173	48.1	15	77	9.19	11	3	225
150-125-315	1450	200	55.6	32	78	22.35	30	3	325
150-125-315A	1450	187	52	28	76	18.78	22	3	304
150-125-315B	1450	173	48.1	24	74	15.29	18.5	3	281.5
150-125-400	1450	200	55.6	50	75	36.3	45	2.8	399.5
150-125-400A	1450	187	52	44	73	32.33	37	2.8	374.5
150-125-400B	1450	173	48.1	38	71	25.24	30	2.8	348.5
200-150-250	1450	400	111.1	20	82	26.6	37	4.5	275
200-150-250A	1450	374	103.8	17.5	80	22.26	30	4.5	257.5
200-150-250B	1450	346	96.2	15	78	18.9	22	4.5	238
200-150-315	1450	400	111.1	32	82	42.5	55	3.5	346
200-150-315A	1450	374	103.8	28	80	35.62	45	3.5	325.5
200-150-315B	1450	346	96.2	24	78	29.02	37	3.5	301.5
200-150-400	1450	400	111.1	50	81	67.2	90	3.8	395
200-150-400A	1450	374	103.8	44	79	56.68	75	3.8	370.5
200-150-400B	1450	346	96.2	38	77	46.54	55	3.8	344.5

Expand all

Only some product parameters are displayed. For more product information, please contact us.

STRUCTURE

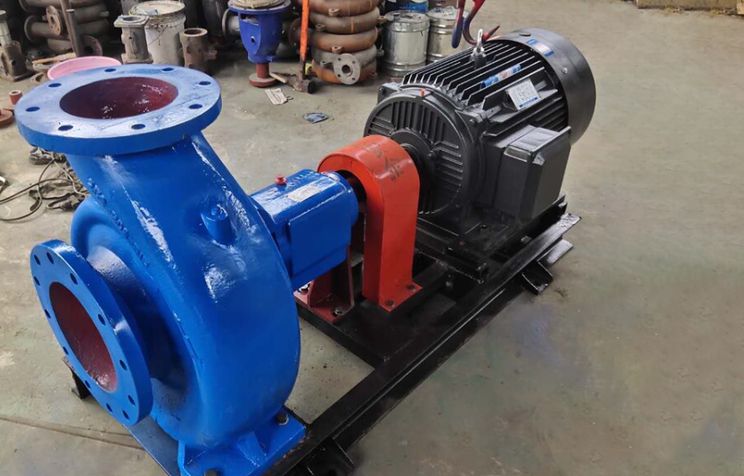

Motor drive

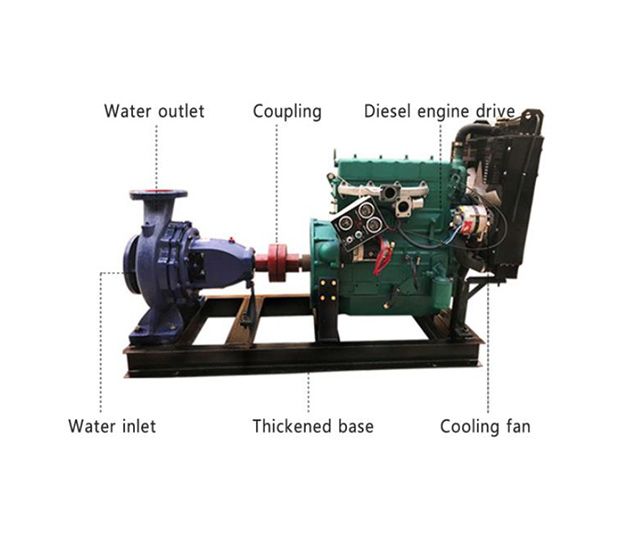

Diesel engine driven

LATEST CASE

IS Series End Suction Pump Jun. 20, 2022

Our products have unique advantages in clean water, chemical industry, pressurized water delivery and other fields.

SERVICE SUPPORT

OEM & ODM
We accept OEM&ODM for any quantity
Customize Capability
All materials customizable
All capabilities customizable

DETAILS

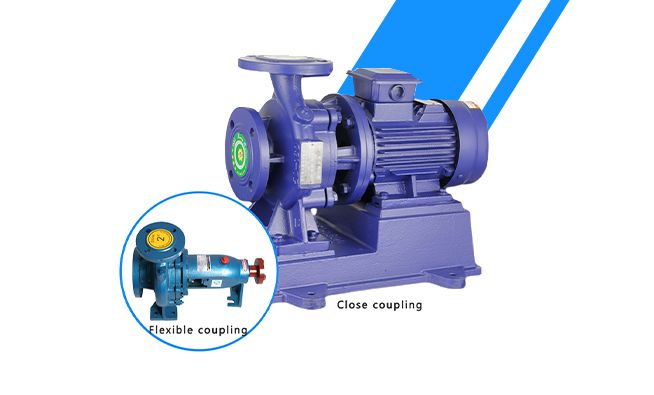

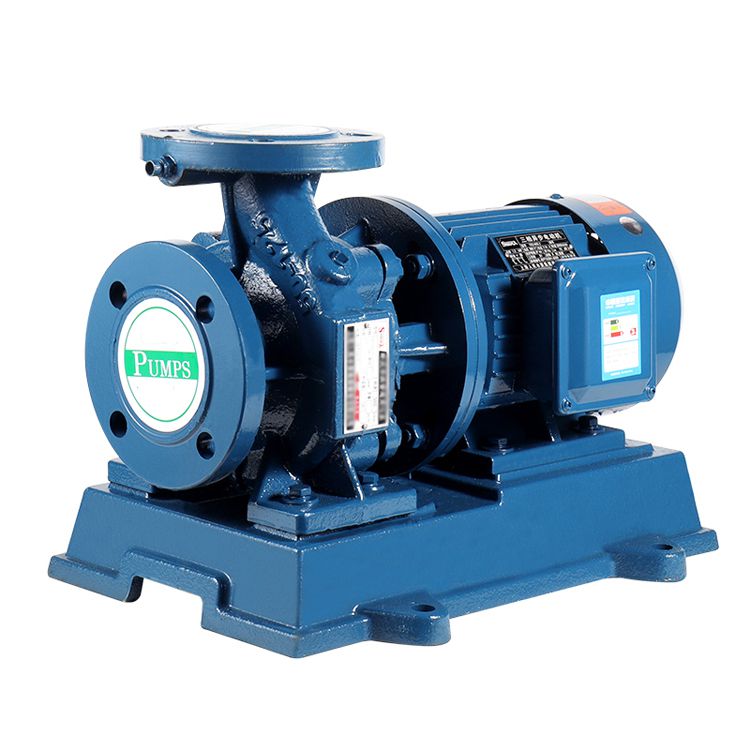

Close coupled centrifugal pump
The impeller is mounted directly on the extended shaft of the motor
The axial dimension is short and the structure is compact.short and the structure is compact.

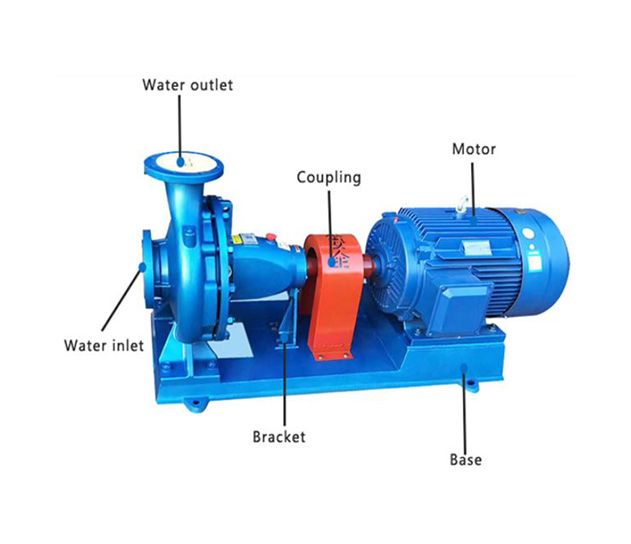

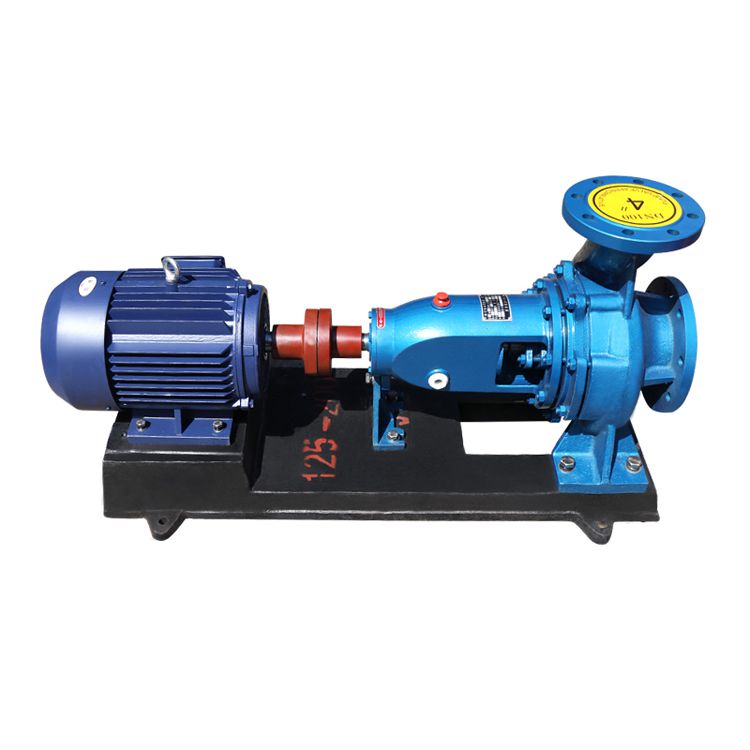

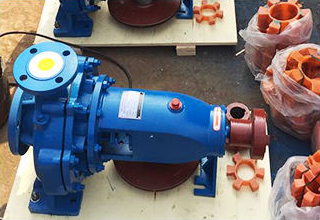

Flexible coupled centrifugal pump
It is mainly composed of pump body, pump cover, impeller, shaft, sealing ring, bushing and suspension bearing components.

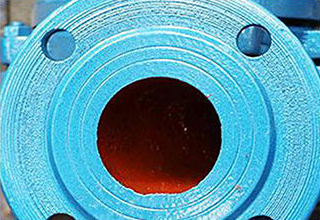

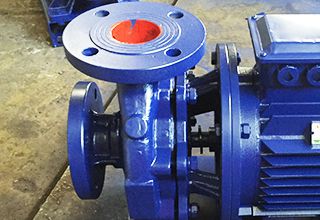

Flange outlet
Direct connection with standard flange joints can improve work efficiency.

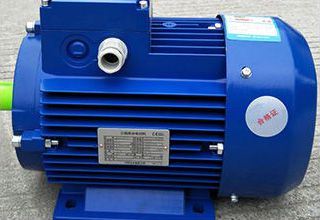

Stable and reliable motor
100% copper wire motor
Protection class: IP68

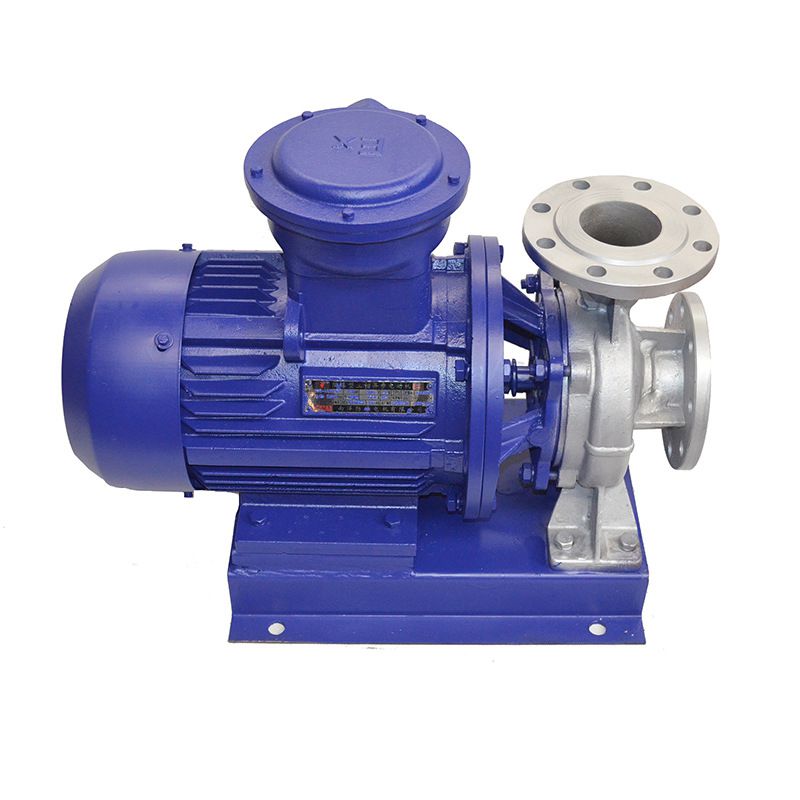

Explosion-proof motors can be equipped under special working conditions

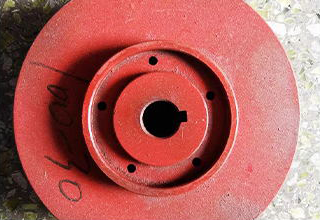

Thickened impellers
Seiko casting
Case iron and stainless steel can be customized according to the requirements of use

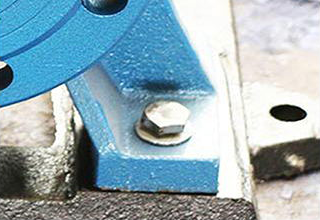

Thick Bottom
High strength
4 thickned fixing holes, more firm and stable, high shock resistance rate

WORKING CONDITIONS

End suction pump working conditions:

1. Suction pressure ≤ 1.0MPa, or the maximum working pressure of the pump system ≤ 1.6MPa, that is, pump suction inlet pressure + pump head ≤ 1.6MPa, pump static pressure test pressure is 2.5MPa, please specify the system working pressure when ordering. If the working pressure of the pump system is greater than 1.6MPa, it should be specified separately when ordering, so that the flow-through part and connecting part of the pump are made of cast steel.

2. Ambient temperature < 40°C, relative humidity < 95%.

3. The volume content of solid particles in the transported medium does not exceed 0.1% of the unit volume, and the particle size is less than 0.2mm. Note: If the medium used has fine particles, please specify when ordering, so that the manufacturer can use wear-resistant mechanical seals.
